MAX96724R, MAX96724 Datasheet - Analog Devices

MAX96724R Quad Tunneling GMSL2/1 to CSI-2 Deserializer

The MAX96724/F/R deserializer converts four GMSL™2/1 inputs to 1, 2, or 4 MIPI D-PHY or C-PHY outputs. The device allows simultaneous transmit bidirectional transmissions over 50Ω coax or 100Ω STP cables that meet the GMSL channel specification. Contact the factory for the GMSL supporting collatera.

MAX96724R Features

* Automotive Grade High Speed Link

* -21.0dB at 3.0GHz (6Gbps) Max Insertion Loss

* -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss

* Auto Adapt for Changes in Channel Conditions

* Operates at -40°C to +105°C Ambient

* Quad Independently Configurable GMSL Inputs

MAX96724-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: MAX96724R, MAX96724. Please refer to the document for exact specifications by model.

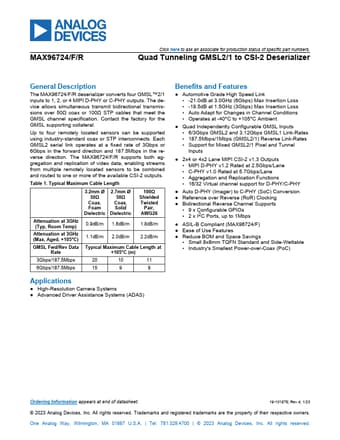

MAX96724R Datasheet Preview Page 2 MAX96724R Datasheet Preview Page 3

Datasheet Details

Part number:

MAX96724R, MAX96724

Manufacturer:

Analog Devices ↗

File Size:

2.41 MB

Description:

Quad tunneling gmsl2/1 to csi-2 deserializer.

Note:

This datasheet PDF includes multiple part numbers: MAX96724R, MAX96724.
Please refer to the document for exact specifications by model.
