MAX967 - Single/Dual/Quad Micropower Rail-to-Rail I/O Comparators

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX967
Manufacturer	Maxim Integrated
File Size	2.03 MB
Description	Single/Dual/Quad Micropower Rail-to-Rail I/O Comparators
Datasheet	MAX967 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX967, MAX965. Please refer to the document for exact specifications by model.

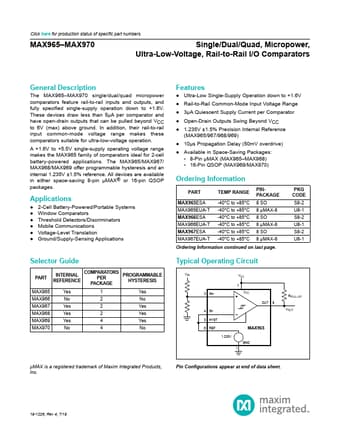

Additional preview pages of the MAX967 datasheet.

Product details

Description

The MAX965 MAX970 single/dual/quad micropower comparators feature rail-to-rail inputs and outputs, and fully specified single-supply operation down to +1.6V.

Features

Ultra-Low Single-Supply Operation down to +1.6V.
Rail-to-Rail Common-Mode Input Voltage Range.
3µA Quiescent Supply Current per Comparator.
Open-Drain Outputs Swing Beyond VCC.
1.235V ±1.5% Precision Internal Reference (MAX965/967/968/969).
10µs Propagation Delay (50mV overdrive).
Available in Space-Saving Packages:.
8-Pin µMAX (MAX965.
MAX968).
16-Pin QSOP (MAX969/MAX970) Ordering Information PART.
