MAX96714R, MAX96714 Datasheet - Analog Devices

MAX96714R Single GMSL2/GMSL1 to CSI-2 Deserializer

The MAX96714/F/R deserializers convert a GMSL™2/1 input to MIPI CSI-2 output. The devices allow a simultaneously transmit bidirectional control channel while forward video transmissions are in progress. The MAX96714/F/R operate at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps.

MAX96714R Features

* Automotive Grade High-Speed Link

* -18dB at 3GHz (6Gbps) Max Insertion Loss

* -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss

* Auto Adapt for Changes in Channel Conditions

* Operates -40°C to +105°C Ambient

* Single GMSL Input Can Support up to 8MP Imagers

MAX96714-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: MAX96714R, MAX96714. Please refer to the document for exact specifications by model.

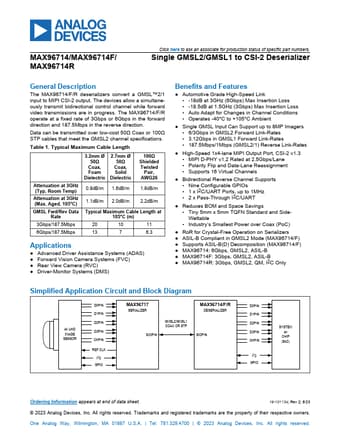

MAX96714R Datasheet Preview Page 2 MAX96714R Datasheet Preview Page 3

Datasheet Details

Part number:

MAX96714R, MAX96714

Manufacturer:

Analog Devices ↗

File Size:

1.70 MB

Description:

Single gmsl2/gmsl1 to csi-2 deserializer.

Note:

This datasheet PDF includes multiple part numbers: MAX96714R, MAX96714.
Please refer to the document for exact specifications by model.
