MAX96724 Datasheet, Deserializer, Analog Devices

MAX96724 Features

• Deserializer
• Automotive Grade High Speed Link
• -21.0dB at 3.0GHz (6Gbps) Max Insertion Loss
• -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
• Auto Adapt for Changes

PDF File Details

Part number:

MAX96724

Manufacturer:

Analog Devices ↗

File Size:

2.41MB

Download:

📄 Datasheet

Description:

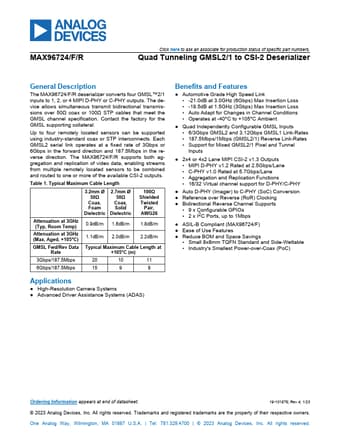

Quad tunneling gmsl2/1 to csi-2 deserializer. The MAX96724/F/R deserializer converts four GMSL™2/1 inputs to 1, 2, or 4 MIPI D-PHY or C-PHY outputs. The device allows simultaneou

MAX96724 Application

• Applications
• High-Resolution Camera Systems
• Advanced Driver Assistance Systems (ADAS) Benefits and Features
• Automotiv

TAGS

MAX96724

Analog Devices
