AIC1562 Datasheet, Converter, Analog Intergrations Corporation

AIC1562 Features

• Converter 3V to 20V Input Voltage Operation. Internal 800mA Switch. Bootstrapped Driver for N-Channel MOSFET. High Efficiency (up to 90%). Fast Transient Response. Internal ±2% Reference. Low Qui

PDF File Details

Part number:

AIC1562

Manufacturer:

Analog Intergrations Corporation

File Size:

256.24kb

Download:

📄 Datasheet

Description:

High-efficiency/ bootstrapped dc/dc converter. The AIC1562 is a high performance monolithic DC/DC converter drive IC with outputbootstrapping capability, designed specifically for

AIC1562 Application

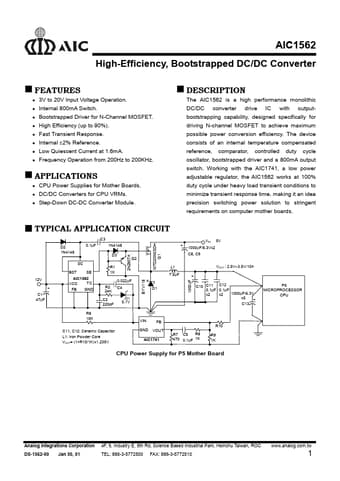

• Applications CPU Power Supplies for Mother Boards. DC/DC Converters for CPU VRMs. Step-Down DC-DC Converter Module. TYPICAL APPLICATION CIRCUIT C3
