AIC1566 Datasheet, Controller, Analog Intergrations Corporation

AIC1566 Features

• Controller Switching Regulator and Low Dropout Linear Regulator on Single Chip. Simple Voltage-Mode PWM Control. Fast Transient Response. ±1.5% 4-Bit Digital-to-Analog Output Voltage. Adjustable C

PDF File Details

Part number:

AIC1566

Manufacturer:

Analog Intergrations Corporation

File Size:

251.42kb

Download:

📄 Datasheet

Description:

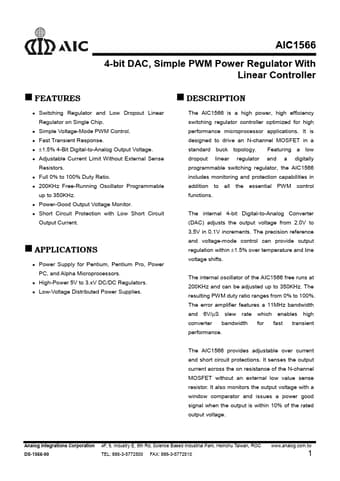

4-bit dac/ simple pwm power regulator with linear controller. The AIC1566 is a high power, high efficiency switching regulator controller optimized for high performance microprocessor application

AIC1566 Application

• Applications It is designed to drive an N-channel MOSFET in a standard buck topology. dropout linear regulator Featuring a low and a digitally pro
