AIC1563 Datasheet, converter equivalent, Analog Intergrations Corporation

AIC1563 Features

  • Converter 3V to 30V Input Voltage Operation. Internal 2A Peak Current Switch. 1.5A Continuous Output Current. Bootstrapped Driver. High Side Current Sense Capability. High Efficiency (up to 90%).

PDF File Details

Part number:

AIC1563

Manufacturer:

Analog Intergrations Corporation

File Size:

308.18kb

Download:

📄 Datasheet

Description:

Versatile dc/dc converter. The AIC1563 is a monolithic control circuit containing the primary functions required for DC to DC converters and highside-sensed con

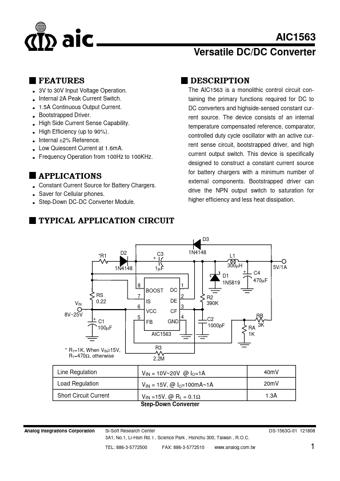

Datasheet Preview: AIC1563 📥 Download PDF (308.18kb)
Page 2 of AIC1563 Page 3 of AIC1563

AIC1563 Application

  • Applications Constant Current Source for Battery Chargers. Saver for Cellular phones. Step-Down DC-DC Converter Module. TYPICAL APPLICATION CIRCUIT
