AIC1630

2-Cell/ Step-Up DC/DC Converter Controller

AIC1630 Features

* Adjustable Output Voltage with Two Resistors (AIC1630A). Power-Saving Shutdown Mode (7µA typical). 120KHz Switching Rate. On-Chip Low Battery Detector. DESCRIPTION The AIC1630 is a DC-DC converter designed to drive an external power switch for more flexibility, especially in higher voltage and larg

AIC1630 General Description

The AIC1630 is a DC-DC converter designed to drive an external power switch for more flexibility, especially in higher voltage and larger power applications. Typically six components are required to set up a step up configuration easily achieving efficiency beyond 80%. A few more components are requ.

AIC1630 Datasheet (374.38 KB)

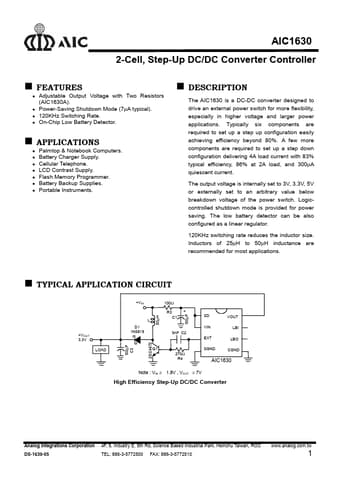

Preview of AIC1630 PDF

Datasheet Details

Part number:

AIC1630

Manufacturer:

Analog Intergrations Corporation

File Size:

374.38 KB

Description:

2-cell/ step-up dc/dc converter controller.
