AIC1638

3-PIN ONE-CELL STEP-UP DC/DC CONVERTER

AIC1638 Features

* ! ! ! ! ! ! !  DESCRIPTION The AIC1638 is a high efficiency step-up DC/DC converter for applications using 1 to 4 NiMH battery cells. Only three external components are required to deliver a fixed output voltage of 2.7V, 3.0V, 3.3V, or 5V. The AIC1638 starts up from below 0.9V input with 1mA load.

AIC1638 General Description

The AIC1638 is a high efficiency step-up DC/DC converter for applications using 1 to 4 NiMH battery cells. Only three external components are required to deliver a fixed output voltage of 2.7V, 3.0V, 3.3V, or 5V. The AIC1638 starts up from below 0.9V input with 1mA load. Pulse Frequency Modulation s.

AIC1638 Datasheet (240.65 KB)

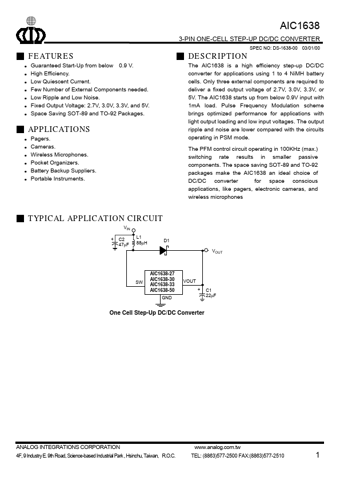

Preview of AIC1638 PDF

Datasheet Details

Part number:

AIC1638

Manufacturer:

Analog Intergrations Corporation

File Size:

240.65 KB

Description:

3-pin one-cell step-up dc/dc converter.
