AIC1633 Datasheet, Converter, Analog Intergrations Corporation

AIC1633 Features

  • Converter High Efficiency Up To 87%. Adjustable Output Voltage with Two Resistors (AIC1633A) Power-Saving Shutdown Mode (7µA typical). Internal 0.8A Switch. 120KHz Switching Rate. Adjustable Swit

PDF File Details

Part number:

AIC1633

Manufacturer:

Analog Intergrations Corporation

File Size:

281.85kb

Download:

📄 Datasheet

Description:

2-cell/ 200ma/ step-up dc/dc converter. The AIC1633 is a high efficiency step up DC/DC converter. Only four external components are required to deliver a fixed voltage of 3V

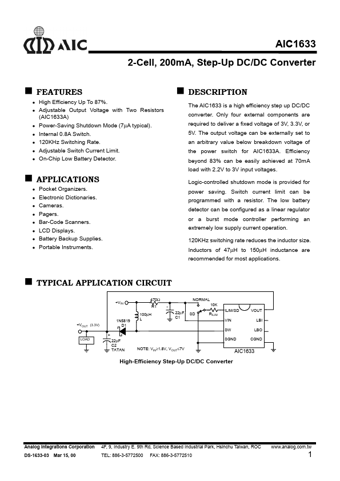

Datasheet Preview: AIC1633 📥 Download PDF (281.85kb)
Page 2 of AIC1633 Page 3 of AIC1633

AIC1633 Application

  • Applications Pocket Organizers. Electronic Dictionaries. Cameras. Pagers. Bar-Code Scanners. LCD Displays. Battery Backup Supplies. Portable Instrum
