AHV12V2KV1MAW Datasheet (Analog Technologies)

AHV12V2KV1MAW, High Voltage Power Supply

Min.

Typ.

Max.

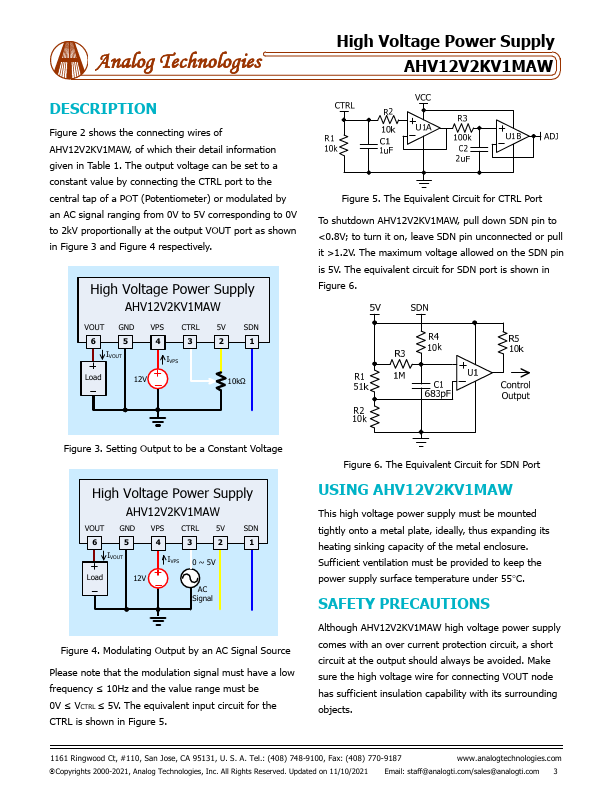

Digital input Shutdown logic low 0V Shutdown logic high 1.2V 0.8V 5V Analog output Reference voltage 5V Analog input Regulation 0V 5V Power input Input voltage 12V Ground for analog, digital and power signals.

Ground electrode 0V Power output Output high voltage 0V

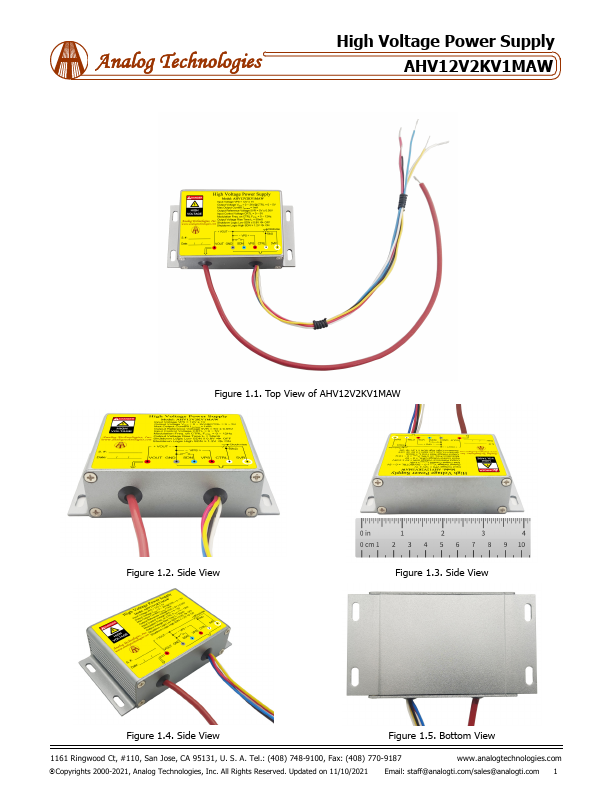

Analog Technologies High Voltage Power Supply AHV12V2KV1MAW Figure 1.1.

Top View of AHV12V2KV1MAW Figure 1.2.

Side View Figure 1.3.

Side View Figure 1.4.

Side View Figure 1.5.

Bottom View 1161 Ringwood Ct, #110, San Jose, CA 95131, U.

Tel.: (408) 748-9100, Fax: (408) 770-9187 www.analogtechnologies.com Copyrights 2000-2021, Analog Technologies, Inc.

Updated on 11/10/2021 Email: staff@analogti.com/sales@analogti.com 1 Analog Technologies High Voltage Power S

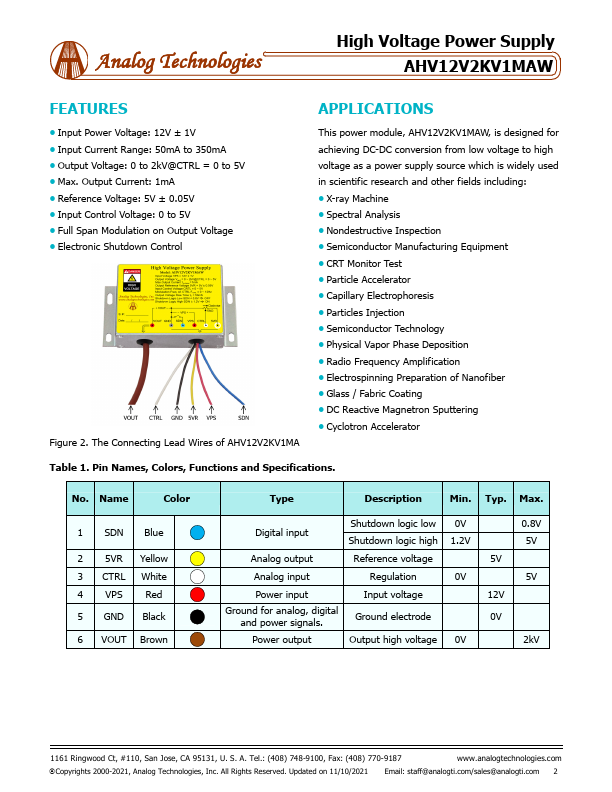

AHV12V2KV1MAW Features

* APPLICATIONS

* Input Power Voltage: 12V ± 1V

* Input Current Range: 50mA to 350mA

* Output Voltage: 0 to 2kV@CTRL = 0 to 5V

* Max. Output Current: 1mA

* Reference Voltage: 5V ± 0.05V

* Input Control Voltage: 0 to 5V

* Full Span Modulation on Output Voltage

* Electro
