AHV2812S

HYBRID-HIGH RELIABILITY DC-DC CONVERTER

International Rectifier

AHV2812S Features

* 80V Transient Input (100 msec max.)

* 50VDC Input (Continous)

* 16V to 40VDC Input Range

* Single, Dual and Triple Outputs

* 15W Output Power (No Temperature Derating)

* Low Input / Output Noise

* Full Military Temperature Range

* Wideband PWM Control Loop

* Mag

AHV2812S General Description

The AHV Series of DC-DC converters are designed to replace the AHE/ATO family of converters in applications requiring compliance to MIL-STD-704A through E, in particular the input surge requirement of 80V specified to withstand transient input voltage of 80V. No input voltage or output power deratin.

AHV2812S Datasheet (759.67 KB)

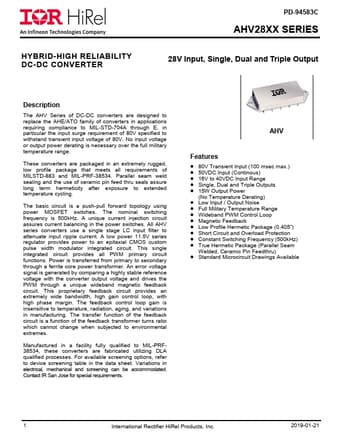

AHV2812S Datasheet Preview — Preview of AHV2812S PDF

Datasheet Details

Part number:

AHV2812S

Manufacturer:

International Rectifier

File Size:

759.67 KB

Description:

Hybrid-high reliability dc-dc converter.
