AHV85040

GaN FET Isolated Gate Driver

Allegro

AHV85040 Features

* Chipset transmits both PWM signal and bias power through a single external isolation transformer

* No high-side bootstrap

* No external secondary-side bias supply

* 50 ns propagation delay (with recommended transformers)

* Separate drive output pins: pull-up

AHV85040 General Description

The AHV85000 + AHV85040 is a cost-optimized isolated gatedrive chipset for gallium-nitride (GaN) field-effect-transistor (FET) devices. When combined with one of the recommended external transformers, it provides a self-powered isolated gate drive solution, ideal for GaN FETs in multiple application.

AHV85040 Datasheet (1.16 MB)

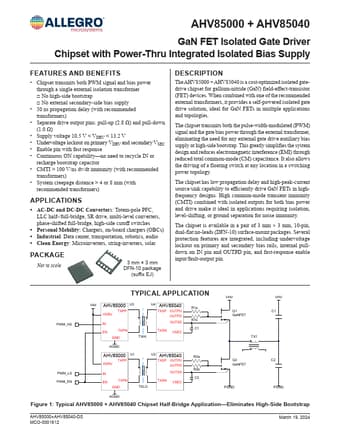

AHV85040 Datasheet Preview — Preview of AHV85040 PDF

Datasheet Details

Part number:

AHV85040

Manufacturer:

Allegro

File Size:

1.16 MB

Description:

Gan fet isolated gate driver.
