AHV1001A Datasheet - ASI

AHV1001A SILICON HYPERABRUPT TUNING VARACTOR

The ASI AHV1001A is a Silicon Hyperabrupt Tuning Varactor in a SOT-23 package. MAXIMUM RATINGS IR PDISS TJ TSGT 100 nA @ VR = 20 V 250 mW @ TC = 25 C -65 C to +150 C -65 C to +150 C O O O O O Lead Configuration: 1 = Anode 2 = N.C. 3 = Cathode CHARACTERISTICS SYMBOL CT CT TR Q f VR = 4.0 V VR = 2.

AHV1001A_ASI.pdf

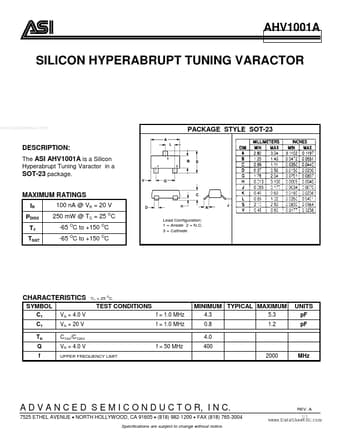

Preview of AHV1001A PDF

Datasheet Details

Part number:

AHV1001A

Manufacturer:

ASI

File Size:

51.09 KB

Description:

Silicon hyperabrupt tuning varactor.
