ANX3111 - Low Power DisplayPort to LVDS Converter

Product Overview

Analogix

Datasheet Details

Part number	ANX3111
Manufacturer	Analogix
File Size	573.49 KB
Description	Low Power DisplayPort to LVDS Converter
Datasheet	ANX3111 Datasheet

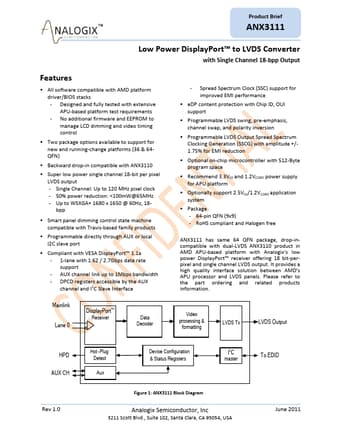

Additional preview pages of the ANX3111 datasheet.

Product details

Description

Low cost DisplayPort™ to LVDS converter with single channel LVDS 18bpp output, 64-pin QFN package Analogix Related Products Part No.ANX3112 ANX1121 ANX3110 ANX1120 ANX9834 ANX9835 ANX9804 ANX9806 ANX9830 ANX9832 Description Low cost DisplayPort™ to LVDS converter with single channel LVDS 18bpp output, 64-pin QFN package Low cost DisplayPort™ to LVDS converter with single channel LVDS 18bpp output, 36-pin QFN package High performance DisplayPort™ 1.1a to dual-LVDS LVDS converter High performa

Features

All software compatible with AMD platform driver/BIOS stacks - Designed and fully tested with extensive APU-based platform test requirements - No additional firmware and EEPROM to manage LCD dimming and video timing control.
Two package options available to support for new and running-change platforms (36 & 64QFN).
Backward drop-in compatible with ANX3110.
Super low power single channel 18-bit per pixel LVDS output - Single Channel: Up to 120 MHz pixel clock - 50% power redu.
