ANX7150 Zero Power HDMI 1.3 Transmitter

INTP/ADDR_SEL SCK/SAUD_CLK 25 24 23 22 DVDD18 DVSS DVDD33 D[7] D[6] D[5] D[4] D[3] D[2] DE 21 20 19 18 17 16 15 14 13 TEST_EN WS/SAUD4 SD0/SPDIF DVDD18 MCLK 36 35 34 33 32 31 30 29 28 27 26 VOREGC TXCN TXCP TX0N TX0P VOREG0 VOREG1 TX1N TX1P TX2N TX2P VOREG2 37 38 39 40 41 42 43 44 45 46 47 48.

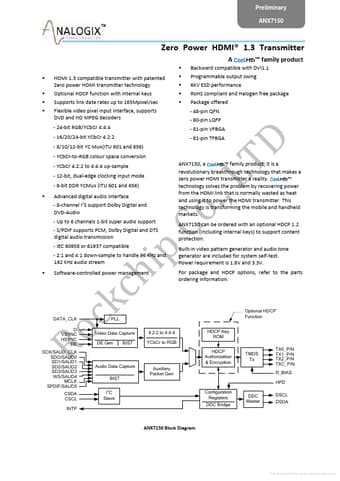

Preliminary ANX7150 Zero Power HDMI® 1.3 Transmitter A CoolHD™ family product HDMI 1.3 compatible transmitter with patented Zero power HDMI transmitter technology Optional HDCP function with internal keys Supports link date rates up to 165Mpixel/sec Flexible video pixel input interface, supports DVD and HD MPEG decoders - 24-bit RGB/YCbCr 4:4:4 - 16/20/24-bit YCbCr 4:2:2 - 8/10/12-bit YC Mux(ITU 601 and 656) - YCbCr-to-RGB colour space conversion - YCbCr 4:2:2 to 4:4:4 u.

ANX7150 Features
