ADX923 - 24-Bit Analog Front-End

This page provides the datasheet information for the ADX923, a member of the ADX920 24-Bit Analog Front-End family.

Datasheet Summary

Description

The ADX920/1/2/3 devices are multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.

Features

  • Three low-noise (ADX923) PGAs and two highresolution ADCs (ADX922/3).
  • Input-referred noise: 8.6μVPP (G = 6).
  • Input bias current: 100pA.
  • Data rate: 125SPS to 8kSPS.
  • CMRR: 117dB; THD:.
  • 107dB.
  • Programmable gain: 1, 2, 3, 4, 6, 8, or 12.
  • Supplies: unipolar or bipolar Analog: 2.7V to 5.5V Digital: 1.65V to 3.6V.
  • Built-in right leg drive amplifier, lead-off detection, test signals.
  • Integrated respiration impedanc.

📥 Download Datasheet

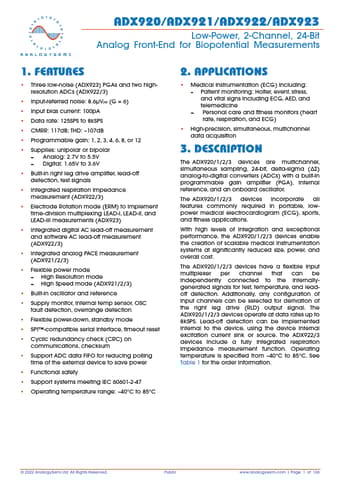

Datasheet preview – ADX923

Datasheet Details

Part number ADX923
Manufacturer AnalogySemi
File Size 1.32 MB
Description 24-Bit Analog Front-End
Datasheet download datasheet ADX923 Datasheet
Additional preview pages of the ADX923 datasheet.

📁 Similar Datasheet

  • ADXL001 - Wide Bandwidth Accelerometer (Analog Devices)
  • ADXL05 - Single Chip Accelerometer (Analog Devices)
  • ADXL1001 - High Frequency MEMS Accelerometers (Analog Devices)
  • ADXL1002 - High Frequency MEMS Accelerometers (Analog Devices)
  • ADXL1003 - MEMS Accelerometer (Analog Devices)
  • ADXL1004 - MEMS Accelerometer (Analog Devices)
  • ADXL1005 - MEMS Accelerometer (Analog Devices)
  • ADXL103 - Dual-Axis iMEMS Accelerometer (Analog Devices)
  • ADXL105 - High Accuracy Single Axis iMEMS Accelerometer (Analog Devices)
  • ADXL105EM-1 - (ADXL1xxEM-x) evaluation module (Analog Devices)
Other Datasheets by AnalogySemi
  • ADX920 - 24-Bit Analog Front-End
  • ADX921 - 24-Bit Analog Front-End
  • ADX922 - 24-Bit Analog Front-End
  • ADX111 - 16-Bit ADC
  • ADX111Q - 16-Bit ADC
  • ADX112 - High-Precision SD ADC
  • ADX112Q - High-Precision SD ADC
  • ADX320Q - Simultaneous Sampling Analog-to-Digital Converter

Full PDF Text Transcription

Click to expand full text
ADX920/ADX921/ADX922/ADX923 Low-Power, 2-Channel, 24-Bit Analog Front-End for Biopotential Measurements 1. FEATURES • Three low-noise (ADX923) PGAs and two highresolution ADCs (ADX922/3) • Input-referred noise: 8.6μVPP (G = 6) • Input bias current: 100pA • Data rate: 125SPS to 8kSPS • CMRR: 117dB; THD: –107dB • Programmable gain: 1, 2, 3, 4, 6, 8, or 12 • Supplies: unipolar or bipolar Analog: 2.7V to 5.5V Digital: 1.65V to 3.
