ADX112 - High-Precision SD ADC

Product Overview

📥 Download Datasheet

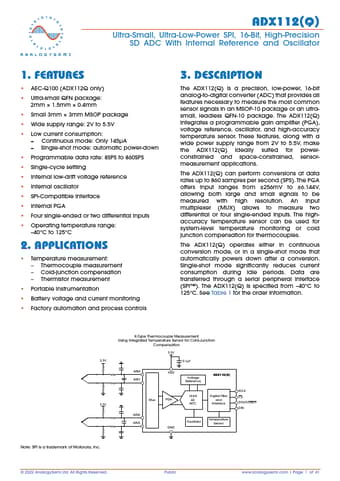

ADX112 High-Precision SD ADC by AnalogySemi - Datasheet Preview — Datasheet preview – ADX112

Datasheet Details

Part number	ADX112
Manufacturer	AnalogySemi
File Size	842.25 KB
Description	High-Precision SD ADC
Datasheet	ADX112 Datasheet
Additional preview pages of the ADX112 datasheet.

Product details

Description

The ADX112(Q) is a precision, low-power, 16-bit analog-to-digital converter (ADC) that provides all

Features

AEC-Q100 (ADX112Q only).
Ultra-small QFN package: 2mm × 1.5mm × 0.4mm.
Small 3mm × 3mm MSOP package.
Wide supply range: 2V to 5.5V.
Low current consumption: Continuous mode: Only 145µA Single-shot mode: automatic power-down.
Programmable data rate: 8SPS to 860SPS.
Single-cycle settling.
Internal low-drift voltage reference.
Internal oscillator.
SPI-Compatible interface.
Internal PGA.
Four.
