ADX320Q - Simultaneous Sampling Analog-to-Digital Converter

ADX320Q Description

ADX320Q/ADX3202Q Low-Power, 2-Channel, 24-Bit, Simultaneous Sampling Analog-to-Digital Converter with PGA Built-In 1..
ADX320Q/ADX3202Q is a one/two-channel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) that offers wide dynamic rang.

ADX320Q Features

* AEC-Q100
* Operating temperature range:
* 40°C to 125°C
* Two high-resolution ADCs with onboard PGA
* Data rate: 125SPS to 16kSPS
* Programmable gain: 1, 2, 3, 4, 6, 8, or 12
* Input bias current: 100pA (max)
* Supplies: unipolar or bi

ADX320Q Applications

* Battery management systems
* Data Acquisition systems
* Battery test equipment
* Electricity meters: commercial and residential
* Circuit breaker
* Energy storage systems

📥 Download Datasheet

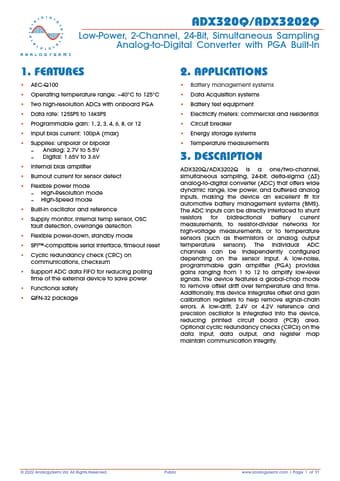

Preview of ADX320Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADX320Q
Manufacturer
AnalogySemi
File Size
1.30 MB
Datasheet
ADX320Q-AnalogySemi.pdf
Description
Simultaneous Sampling Analog-to-Digital Converter
