ADX111Q

16-Bit ADC

ADX111Q General Description

I2C slave address select Comparator output or conversion ready, open drain, connected to a pull-up resistor Ground Analog input 0 Analog input 1 Analog input 2 Analog input 3 Power supply. Connects a 0.1μF, power-supply decoupling capacitor to GND. Serial data. Transmits and receives data. Serial cl.

ADX111Q Datasheet (2.80 MB)

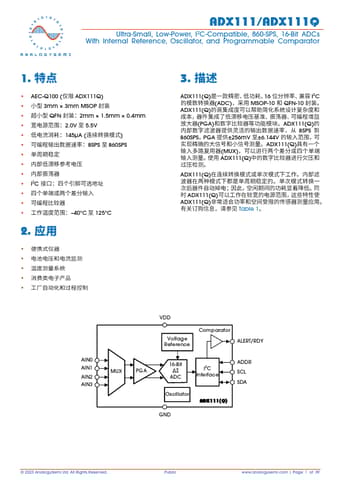

ADX111Q Datasheet Preview — Preview of ADX111Q PDF

Datasheet Details

Part number:

ADX111Q

Manufacturer:

AnalogySemi

File Size:

2.80 MB

Description:

16-bit adc.
ADX111/ADX111Q Ultra-Small, Low-Power, I2C-Compatible, 860-SPS, 16-Bit ADCs With Internal Reference, Oscillator, and Programmable Comparator 1. .
