ADX112Q, ADX112 - High-Precision SD ADC

ADX112Q Description

ADX112(Q) Ultra-Small, Ultra-Low-Power SPI, 16-Bit, High-Precision SD ADC With Internal Reference and Oscillator 1..
The ADX112(Q) is a precision, low-power, 16-bit analog-to-digital converter (ADC) that provides all features necessary to measure the most common sens.

ADX112Q Features

* AEC-Q100 (ADX112Q only)
* Ultra-small QFN package: 2mm × 1.5mm × 0.4mm
* Small 3mm × 3mm MSOP package
* Wide supply range: 2V to 5.5V
* Low current consumption: Continuous mode: Only 145µA Single-shot mode: automatic power-down
* Programmable data ra

ADX112Q Applications

* Temperature measurement: Thermocouple measurement Cold-junction compensation Thermistor measurement
* Portable instrumentation
* Battery voltage and current monitoring

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADX112Q, ADX112. Please refer to the document for exact specifications by model.

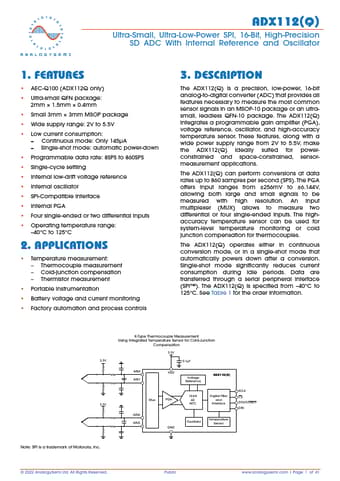

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADX112Q, ADX112
Manufacturer
AnalogySemi
File Size
842.25 KB
Datasheet
ADX112-AnalogySemi.pdf
Description
High-Precision SD ADC
Note
This datasheet PDF includes multiple part numbers: ADX112Q, ADX112.
Please refer to the document for exact specifications by model.
