CSD202

Bi-Directional Current and Power Monitor

CSD202 Features

* Senses bus voltages from 0V to 36V

* High-side or low-side sensing

* Reports current, voltage, and power

* High accuracy: 0.1% gain error (max) 2.5μV offset (max)

* Configurable averaging options

* 16 programmable addresses

* Operates from 2.

CSD202 General Description

The CSD202 senses the bi-directional current on a high common-mode bus and monitors the bus voltage with an I2C™- or SMBUS-compatible digital interface. The programmable calibration value, conversion times, averaging, and an internal multiplier make it easy to read out current, bus voltage, and powe.

CSD202 Datasheet (703.06 KB)

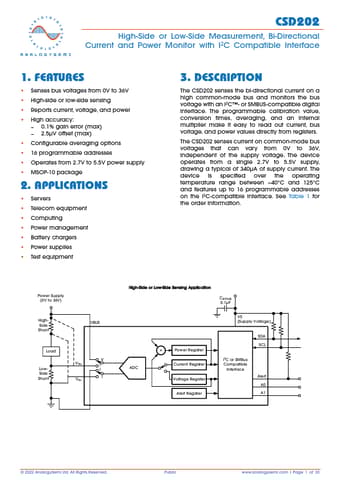

CSD202 Datasheet Preview — Preview of CSD202 PDF

Datasheet Details

Part number:

CSD202

Manufacturer:

AnalogySemi

File Size:

703.06 KB

Description:

Bi-directional current and power monitor.
