CSD22202W15

P-Channel Power MOSFET

CSD22202W15 Features

* 1 Low Resistance

* Small Footprint 1.5 mm × 1.5 mm

* Pb Free

* Gate ESD Protection

* RoHS Compliant

* Halogen Free

* Gate-Source Voltage Clamp 2 Applications

* Battery Management

* Battery Protection

* Load Switch Appl

CSD22202W15 General Description

The device is designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra-low profile. Low on resistance coupled with the small footprint and low profile make the device ideal for battery operated space constrained .

CSD22202W15 Datasheet (880.77 KB)

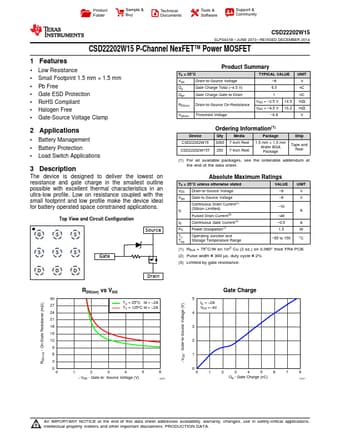

Preview of CSD22202W15 PDF

Datasheet Details

Part number:

CSD22202W15

Manufacturer:

Texas Instruments ↗

File Size:

880.77 KB

Description:

P-channel power mosfet.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CSD22202W15 SLPS431B

* JUNE 2013

* REVISED D.
