CSD22204W

P-Channel Power MOSFET

CSD22204W Features

* 1 Low Resistance

* Small Footprint 1.5 mm × 1.5 mm

* Pb Free

* Gate ESD Protection

* RoHS Compliant

* Halogen Free

* Gate-Source Voltage Clamp 2 Applications

* Battery Management

* Battery Protection

* Load Switch Appl

CSD22204W General Description

This

*8 V, 8.2 mΩ, 1.5 mm × 1.5 mm device is designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra low profile. Low onresistance coupled with the small footprint and low profile make the device ideal f.

CSD22204W Datasheet (465.00 KB)

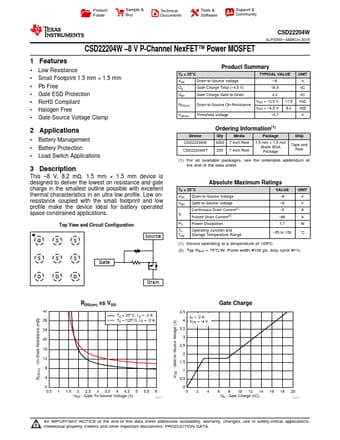

Preview of CSD22204W PDF

Datasheet Details

Part number:

CSD22204W

Manufacturer:

Texas Instruments ↗

File Size:

465.00 KB

Description:

P-channel power mosfet.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CSD22204W

*8 V P-Channel NexFET™ Power MOSFET CSD22.
