ANB2N65B

N-Chanel Power MOSFET

ANB2N65B Features

* Low Qg Low Rdson RoHS compliant 1 Gate 2 Drain 3 Source Table 1. Device summary Part numbers ANA2N65B ANP2N65B ANB2N65B AND2N65B ANI2N65B ANU2N65B Marking A2N65B P2N65B B2N65B D2N65B I2N65B I2N65B Package TO-220FP TO-220 D²PAK DPAK I PAK IPAK Value TO-220FP TO-220 D²PAK I2PAK DPAK IPAK 2 Packaging

ANB2N65B Datasheet (908.80 KB)

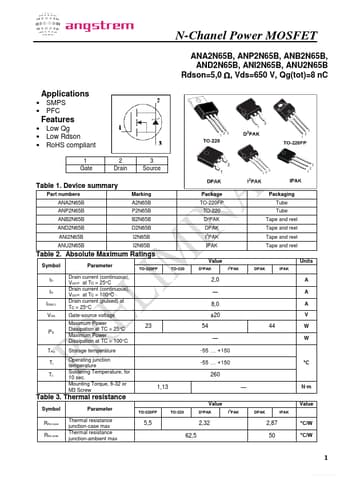

Preview of ANB2N65B PDF

Datasheet Details

Part number:

ANB2N65B

Manufacturer:

Angstrem

File Size:

908.80 KB

Description:

N-chanel power mosfet.
N-Chanel Power MOSFET ANA2N65B, ANP2N65B, ANB2N65B, AND2N65B, ANI2N65B, ANU2N65B Rdson=5,0 , Vds=650 V, Qg(tot)=8 nC Applications
*
*
* <.
