ANB6, ANB2 Datasheet - AMI

ANB6 CMOS Gate Array

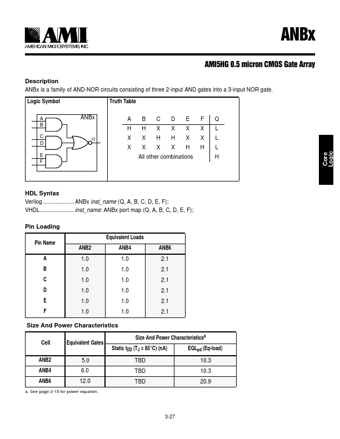

ANBx is a family of AND-NOR circuits consisting of three 2-input AND gates into a 3-input NOR gate. Logic Symbol Truth Table A ANBx A BCDE FQ B HHXXXX L C Q XXHHXX L D X X X XHH L E All other combinations H F Core Logic HDL Syntax Verilog ANBx inst_name (Q, A, B, C, D, E, F); VHDL inst.

ANB2-AMI.pdf

ANB6 Datasheet Preview — This datasheet PDF includes multiple part numbers: ANB6, ANB2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ANB6, ANB2

Manufacturer:

AMI

File Size:

25.25 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: ANB6, ANB2.
Please refer to the document for exact specifications by model.
