ANB2

CMOS Gate Array

ANB2 General Description

ANBx is a family of AND-NOR circuits consisting of three 2-input AND gates into a 3-input NOR gate. Logic Symbol Truth Table A ANBx A BCDE FQ B HHXXXX L C Q XXHHXX L D X X X XHH L E All other combinations H F Core Logic HDL Syntax Verilog ANBx inst_name (Q, A, B, C, D, E, F); VHDL inst.

ANB2 Datasheet (25.25 KB)

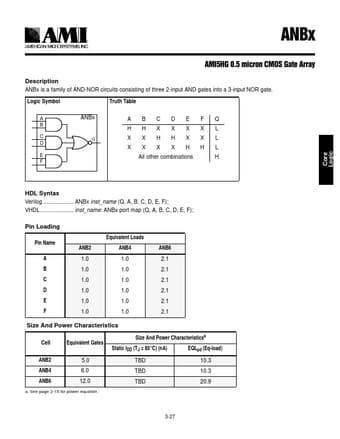

Preview of ANB2 PDF

Datasheet Details

Part number:

ANB2

Manufacturer:

AMI

File Size:

25.25 KB

Description:

Cmos gate array.
