APM2312 - N-Channel MOSFET

Product Overview

Anpec Electronics

Datasheet Details

Part number	APM2312
Manufacturer	Anpec Electronics
File Size	182.62 KB
Description	N-Channel MOSFET
Datasheet	APM2312 Datasheet

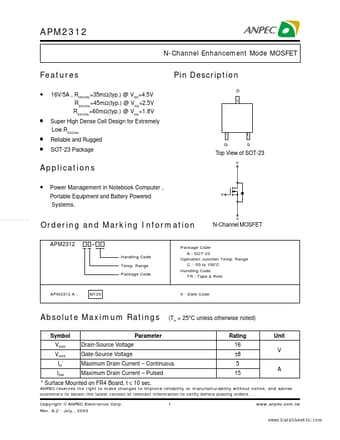

Additional preview pages of the APM2312 datasheet.

Product details

Description

D 3 RDS(ON)=45mΩ(typ.) @ VGS=2.5V RDS(ON)=60mΩ(typ.) @ VGS=1.8V Super High Dense Cell Design for Extremely Low RDS(ON) Reliable and Rugged G S 1 2 SOT-23 Package Top View of SOT-23 D Applications Power Management in Notebook Computer , Portable Equipment and Battery Powered Systems.

Features

16V/5A , RDS(ON)=35mΩ(typ. ) @ VGS=4.5V Pin.
