APM2317 Datasheet, Mosfet, Tuofeng Semiconductor

APM2317 Features

  • Mosfet Pin Description
  • -20V/-4.5A , RDS(ON)=28mΩ (typ.) @ VGS=-4.5V RDS(ON)=38mΩ (typ.) @ VGS=-2.5V RDS(ON)=55mΩ (typ.) @ VGS=-1.8V
  • Super High Dense Cell Design

PDF File Details

Part number:

APM2317

Manufacturer:

Tuofeng Semiconductor

File Size:

175.00kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

  • -20V/-4.5A , RDS(ON)=28mΩ (typ.) @ VGS=-4.5V RDS(ON)=38mΩ (typ.) @ VGS=-2.5V RDS(ON)=55mΩ (typ.) @ VGS=-1.8V
  • Sup

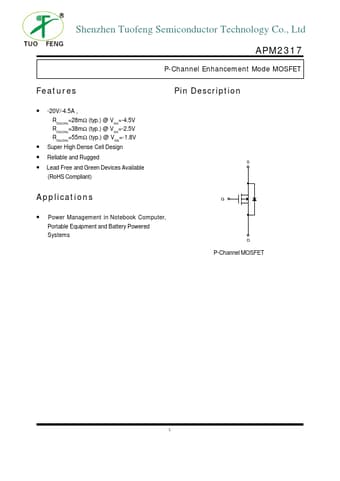

  • Datasheet Preview: APM2317 📥 Download PDF (175.00kb)
    Page 2 of APM2317 Page 3 of APM2317

    APM2317 Application

    • Applications
    • Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems G D P-Channel MOSFET 1 Shenzhen Tuof
