APM2317A Datasheet, Mosfet, Anpec Electronics

APM2317A Features

  • Mosfet
  • -20V/-4.5A , RDS(ON)=28mΩ (typ.) @ VGS=-4.5V RDS(ON)=38mΩ (typ.) @ VGS=-2.5V RDS(ON)=55mΩ (typ.) @ VGS=-1.8V Pin Description
  • Super High Dense

PDF File Details

Part number:

APM2317A

Manufacturer:

Anpec Electronics

File Size:

207.21kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

  • Super High Dense Cell Design Reliable and Rugged Lead Free Available (RoHS Compliant) Top View of SO

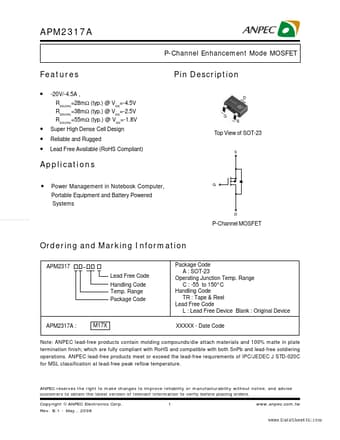

  • Datasheet Preview: APM2317A 📥 Download PDF (207.21kb)
    Page 2 of APM2317A Page 3 of APM2317A

    APM2317A Application

    • Applications
    • Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems D www.DataSheet4U.com G P-Channel MOS
