APM4050APU - P-Channel MOSFET

Product Overview

Anpec

Datasheet Details

Part number	APM4050APU
Manufacturer	Anpec
File Size	199.47 KB
Description	P-Channel MOSFET
Datasheet	APM4050APU Datasheet

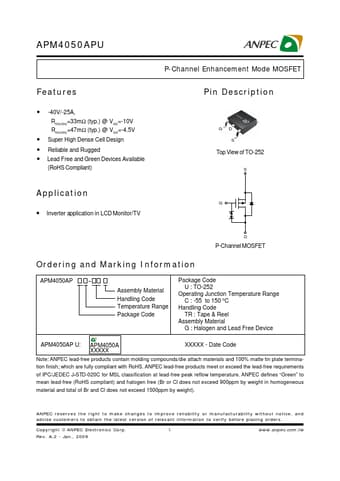

Additional preview pages of the APM4050APU datasheet.

Product details

Description

GD S Top View of TO-252 S Application G Inverter application in LCD Monitor/TV D P-Channel MOSFET Ordering and Marking Information APM4050AP Assembly Material Handling Code Temperature Range Package Code Package Code U : TO-252 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel Assembly Material G : Halogen and Lead Free Device APM4050AP U: APM4050A XXXXX XXXXX - Date Code Note: ANPEC lead-free products contain molding compounds/die attach ma

Features

-40V/-25A, RDS(ON)=33mΩ (typ. ) @ VGS=-10V RDS(ON)=47mΩ (typ. ) @ VGS=-4.5V.
Super High Dense Cell Design.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant) P-Channel Enhancement Mode MOSFET Pin.
