APM4015K - P-Channel MOSFET

Product Overview

ANPEC

Datasheet Details

Part number	APM4015K
Manufacturer	ANPEC
File Size	250.72 KB
Description	P-Channel MOSFET
Datasheet	APM4015K Datasheet

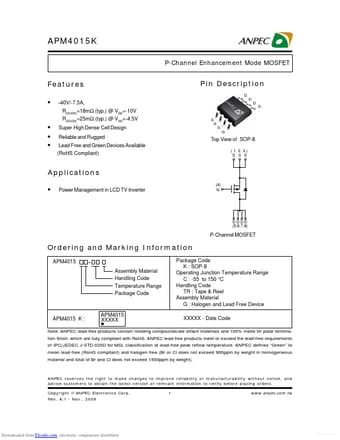

Additional preview pages of the APM4015K datasheet.

Product details

Description

D D D D Super High Dense Cell Design Reliable and Rugged Lead Free and Green Devices Available (RoHS Compliant) S S S G Top View of SOP-8 ( 1, 2, 3 ) S S S Applications Power Management in LCD TV Inverter (4) G D D DD (5,6,7,8) P-Channel MOSFET Ordering and Marking Information APM4015 Assembly Material Handling Code Temperature Range Package Code Package Code K : SOP-8 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape

Features

-40V/-7.5A, RDS(ON)=18mΩ (typ. ) @ VGS=-10V RDS(ON)=25mΩ (typ. ) @ VGS=-4.5V Pin.
