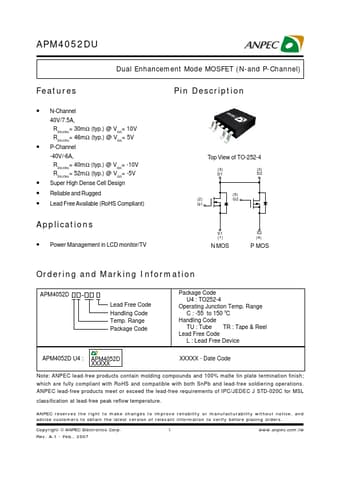

APM4052DU Datasheet, Mosfet, Anpec

✔ APM4052DU Features

N-Channel 40V/7.5A, RDS(ON)= 30mΩ (typ.) @ VGS= 10V RDS(ON)= 46mΩ (typ.) @ VGS= 5V
P-Channel -40V/-6A, R= DS(ON) 40mΩ (typ.) @ V= GS -10V R= DS(ON) 52mΩ

✔ APM4052DU Application

Power Management in LCD monitor/TV Pin Description Top View of TO-252-4 (3) (3) D1 D2 (5) (2) G2

PDF File Details

Anpec manufacturer logo

Part number:

APM4052DU

Manufacturer:

Anpec

File Size:

240.89kb

Download:

📄 Datasheet

Description:

Dual enhancement mode mosfet. Top View of TO-252-4 (3) (3) D1 D2 (5) (2) G2 G1 S1 (1) N MOS S2 (4) P MOS Ordering and Marking Information APM4052D Le

📥 Download PDF (240.89kb)
