ATL3A1632H12A

Mobile LPDDR3 SDRAM

ATL3A1632H12A Features

* Features

* Density: 16Gb

* Data rate: 1600Mbps(CLK: 800MHz)

* 8n prefetch DDR architecture

* Array configuration

* 512 Meg x 32 (DDP)

* Interface: HSUL_12

* Burst lengths(BL):8

* Burst type(BT)

* Read latency(RL):3,6,8,9,10,11,

ATL3A1632H12A General Description

The pin description table below is a comprehensive list of signals for the device family. All signals listed may not be supported on this device. See Bond Pad tables for information specific to this device. Table 21: Pin Descriptions Symbol CA[9:0] CK_t, CK_c CKE[1:0] CS[1:0]_n DM[3:0] ODT DQ[31:.

ATL3A1632H12A Datasheet (1.74 MB)

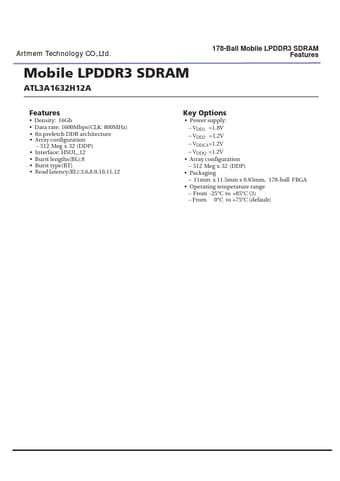

ATL3A1632H12A Datasheet Preview — Preview of ATL3A1632H12A PDF

Datasheet Details

Part number:

ATL3A1632H12A

Manufacturer:

Artmem

File Size:

1.74 MB

Description:

Mobile lpddr3 sdram.
