ATL432

2.5-V Low Iq Adjustable Precision Shunt Regulator

ATL432 Features

* 1 Adjustable Regulated Output of 2.5 V to 36 V

* Very-Low Operating Current

* IKA(min) = 35 µA (Max)

* IREF = 150 nA (Max)

* Internally Compensated for Stability

* Stable With No Capacitive Load

* Reference Voltage Tolerances at 25°C

ATL432 General Description

The ATL431 and ATL432 are three-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive, commercial, and industrial temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors. These.

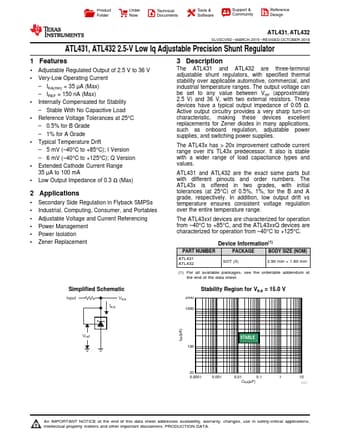

ATL432 Datasheet (1.53 MB)

Preview of ATL432 PDF

Datasheet Details

Part number:

ATL432

Manufacturer:

Texas Instruments ↗

File Size:

1.53 MB

Description:

2.5-v low iq adjustable precision shunt regulator.
