ATL431LI-Q1

Programmable Shunt Regulator

ATL431LI-Q1 Features

* 1 Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient operating temperature

* Reference voltage tolerance at 25°C

* 0.5% (B grade)

* 1% (A grade)

ATL431LI-Q1 General Description

The ATL43xLI-Q1 is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. Its output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V with two external resistors. The device has.

ATL431LI-Q1 Datasheet (1.39 MB)

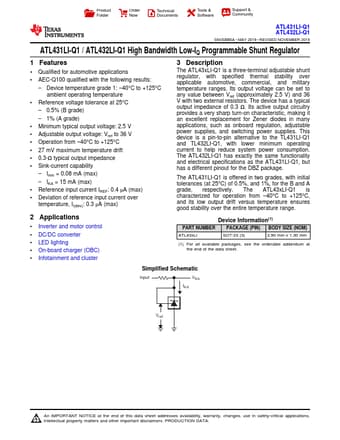

Preview of ATL431LI-Q1 PDF

Datasheet Details

Part number:

ATL431LI-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.39 MB

Description:

Programmable shunt regulator.
Product Folder Order Now Technical Documents Tools & Software Support & Community ATL431LI-Q1 ATL432LI-Q1 SNVSBB0A

* MAY 2019

* R.
