AK2500B - DS3/STS-1 Analog Line Receiver

AK2500B Description

ASAHI KASEI [AK2500B] AK2500B DS3/STS-1 Analog Line Receiver GENERAL .
The AK2500B is a DSP based line receiver.

AK2500B Applications

* Provides Line Equalization, and Clock and Data Recovery Functions PACKAGE 24 pin SOP APPLICATIONS Interfacing network transmission equipment such as SONET multiplexor and M13 to a DSX3 cross connect. Interfacing customer premises equipment to a line. - BLOCK DIAGRAM RLOL TREF BREF IREF RCLK

📥 Download Datasheet

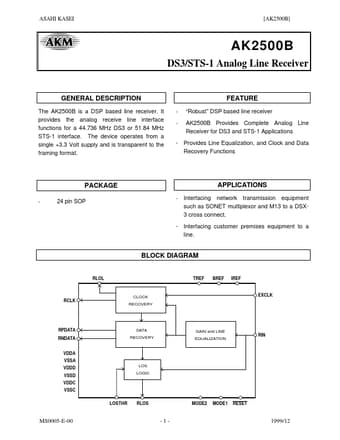

Preview of AK2500B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK2500B
Manufacturer
Asahi Kasei Microsystems
File Size
78.04 KB
Datasheet
AK2500B_AsahiKaseiMicrosystems.pdf
Description
DS3/STS-1 Analog Line Receiver
