AK2504A

DS3/STS-1/ES Transceiver

AKM

AK2504A General Description

The AK2504A is a DSP based line transceiver. It provides the analog transmit/receive line interface functions for DS3(44.736MHz) /STS-1(51.84MHz) or E3(34.368MHz) interface. www.DataSheet4U.com Transmitter includes on-chip pulse shaper, B3ZS/ HDB3 Encoder. Pulse level adjustment function is very use.

AK2504A Datasheet (240.47 KB)

Rating: 1 ★ (3 votes)

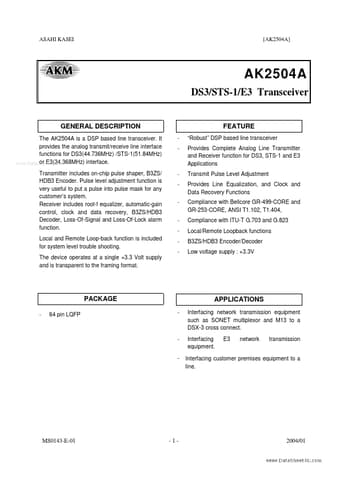

AK2504A Datasheet Preview — Preview of AK2504A PDF

Datasheet Details

Part number:

AK2504A

Manufacturer:

AKM

File Size:

240.47 KB

Description:

Ds3/sts-1/es transceiver.
