AK2548 Datasheet - Asahi Kasei Microsystems

AK2548 7 channel E1 Transceiver

The AK2548 is the 7 channel E1 transceiver for a SDH/SONET MUX, M13 MUX, etc. It includes seven independent transmitters, clock and data recovery, LOS detector, control circuit in one LQFP-144 package which saves space, power consumption and the board design time. Internally generated transmit pulse.

AK2548_AsahiKaseiMicrosystems.pdf

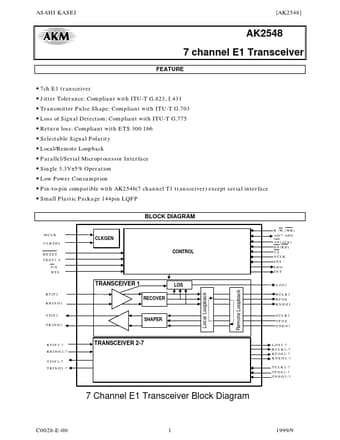

Preview of AK2548 PDF
AK2548 Datasheet Preview Page 2 AK2548 Datasheet Preview Page 3

Datasheet Details

Part number:

AK2548

Manufacturer:

Asahi Kasei Microsystems

File Size:

158.85 KB

Description:

7 channel e1 transceiver.
