AK4101A

Quad Outputs 192kHz 24-Bit DIT

AK4101A Features

* o Support AES3, IEC60958, S/PDIF & EIAJ CP1201 professional and consumer formats o Generates CRCC codes and parity bits o Four on-chip RS422 line drivers o 64-byte on-chip buffer memory for Channel Status and User bits o Supports synchronous/asynchronous access to Channel Status and User bits

AK4101A General Description

The AK4101A is a four outputs digital audio transmitter (DIT) which supports data rate up to 192kHz sample rate operation. The AK4101A supports AES3, IEC60958, S/PDIF & EIAJ CP1201 interface standards. The AK4101A accepts audio data and auxiliary information data and etc, which is then biphase-encod.

AK4101A Datasheet (313.52 KB)

Rating: 1 ★ (2 votes)

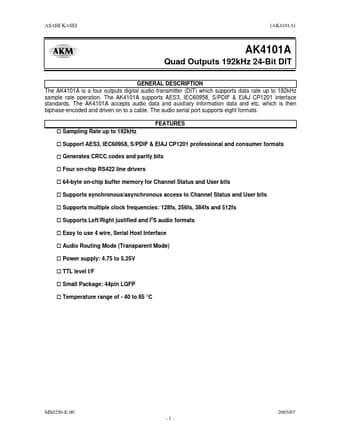

Preview of AK4101A PDF

Datasheet Details

Part number:

AK4101A

Manufacturer:

Asahi Kasei Microsystems

File Size:

313.52 KB

Description:

Quad outputs 192khz 24-bit dit.
