AK4103 Datasheet - Asahi Kasei Microsystems

192kHz 24-Bit DIT

AK4103 Features

* Sampling Rate up to 192kHz Support AES3, IEC60958, S/PDIF & EIAJ CP1201 professional and consumer formats Generates CRC codes and parity bits On-chip RS422 line driver 16-byte on-chip buffer memory for Channel Status and User bits Supports synchronous/asynchronous access to Channel Status and User b

AK4103 General Description

The AK4103 is a digital audio transmitter(DIT) which supports data rate up to 192kHz sample rate operation. The AK4103 encodes and transmits audio data according to the AES3, IEC60958, S/PDIF & EIAJ CP1201 interface standards. The AK4103 accepts audio and digital data, which is then multiplexed, enc.

AK4103 Datasheet (315.14 KB)

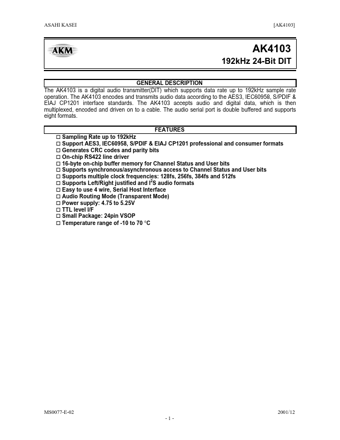

AK4103 Datasheet Preview — Preview of AK4103 PDF

Datasheet Details

Part number:

AK4103

Manufacturer:

Asahi Kasei Microsystems

File Size:

315.14 KB

Description:

192khz 24-bit dit.
