AK4103A Datasheet - Asahi Kasei Microsystems

192kHz 24-Bit DIT

AK4103A Features

* Support AES3, IEC60958, S/PDIF & EIAJ CP1201 professional and consumer formats Generates CRCC codes and parity bits On-chip RS422 line driver 16-byte on-chip buffer memory for Channel Status and User bits Supports synchronous/asynchronous access to Channel Status and User bits Supp

AK4103A General Description

The AK4103A is a digital audio transmitter (DIT) which supports data rate up to 192kHz sample rate operation. The AK4103A supports AES3, IEC60958, S/PDIF & EIAJ CP1201 interface standards. The AK4103A accepts audio data, auxiliary information data and etc, which is then biphase-encoded and driven on.

AK4103A Datasheet (384.08 KB)

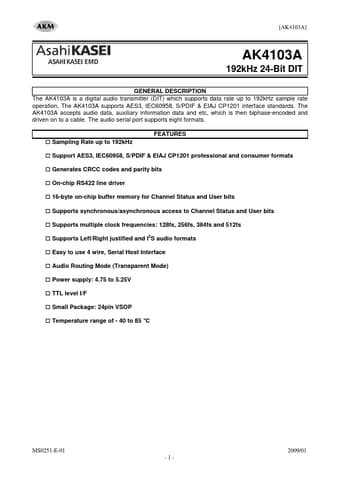

AK4103A Datasheet Preview — Preview of AK4103A PDF

Datasheet Details

Part number:

AK4103A

Manufacturer:

Asahi Kasei Microsystems

File Size:

384.08 KB

Description:

192khz 24-bit dit.
