AK5392 - Enhanced Dual Bit 24Bit ADC

Description

The AK5392 is a 24bit, 128x oversampling 2ch A/D Converterfor professional digital audio systems.

The modulator in the AK5392 uses the new developed Enhanced Dual Bit architecture.

Features

  • † † † † † † † † † † † † Enhanced Dual Bit ADC Sampling Rate: 1kHz∼ 54kHz Full Differential Inputs S/(N+D): 105dB DR: 116dB S/N: 116dB High Performance Linear Phase Digital Anti-Alias filter.
  • Passband: 0∼ 21.768kHz(@fs=48kHz).
  • Ripple: 0.001dB.
  • Stopband: 110dB Digital HPF & Offset Calibration for Offset Cancel Master Clock: 256/384fs Power Supply: 5V±5%(Analog), 3∼ 5.25V(Digital) Power Dissipation: 470mW Package: 28pin SOP 0188-E-01 -1- 1997/11 ASAHI KASEI [AK5392.

📥 Download Datasheet

Datasheet preview – AK5392

Datasheet Details

Part number AK5392
Manufacturer Asahi Kasei Microsystems
File Size 171.62 KB
Description Enhanced Dual Bit 24Bit ADC
Datasheet download datasheet AK5392 Datasheet
Additional preview pages of the AK5392 datasheet.

📁 Similar Datasheet

  • AK5393 - 96kHz Analog-to-Digital Converter (AKM)
  • AK5321024N - 1048576 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK5321024W - 1048576 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK5322048 - 2097152 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK5322048BW - 2097152 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK5322048N - 2097152 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK532256AW - 262144 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK532256W - 262144 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK5324096W - 4194304 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
  • AK532512W - 524288 Word by 32 Bit CMOS Dynamic Random Access Memory (ACCUTEK)
Other Datasheets by Asahi Kasei Microsystems
  • AK5394A - Super High Performance 192kHz 24-Bit ADC
  • AK5397 - 32-Bit Stereo Premium ADC
  • AK5351 - Enhanced Dual bit 20bit ADC
  • AK5352 - 96kHz Sampling 20bit ADC
  • AK5353 - 96kHz 24-BIT ADC
  • AK5354 - LOW POWER 20-BIT ADC
  • AK5355 - LOW POWER 16-BIT ADC
  • AK5356 - Low Power 20-Bit ADC

Full PDF Text Transcription

Click to expand full text

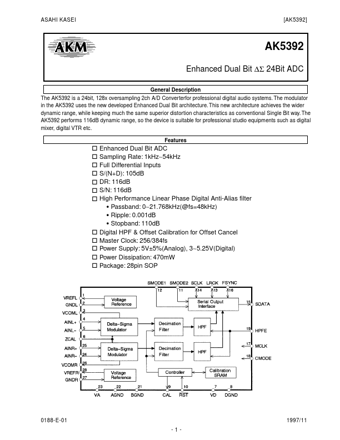

ASAHI KASEI [AK5392] AK5392 Enhanced Dual Bit ∆Σ 24Bit ADC General Description The AK5392 is a 24bit, 128x oversampling 2ch A/D Converterfor professional digital audio systems. The modulator in the AK5392 uses the new developed Enhanced Dual Bit architecture. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characteristics as conventional Single Bit way. The AK5392 performs 116dB dynamic range, so the device is suitable for professional studio equipments such as digital mixer, digital VTR etc. Features † † † † † † † † † † † † Enhanced Dual Bit ADC Sampling Rate: 1kHz∼ 54kHz Full Differential Inputs S/(N+D): 105dB DR: 116dB S/N: 116dB High Performance Linear Phase Digital Anti-Alias filter • Passband: 0∼ 21.
