AS432

1.24V Precision Adjustable Shunt Reference

AS432 Features

* Temperature-compensated: 50 ppm/°C 0.25% to 2.0% bandgap offered Internal amplifier with 150 mA capability Multiple temperature ranges Low frequency dynamic output impedance: < 150 mΩ Low output noise Top view Pin Configuration

AS432 General Description

The AS432 is a three terminal adjustable shunt regulator utilizing an accurate 1.24V bandgap reference. The AS432 is functionally similar to an AS431 except for its lower reference voltage, making it usable in a wide variety of low voltage applications. Because of its robust bipolar technology, the .

AS432 Datasheet (64.58 KB)

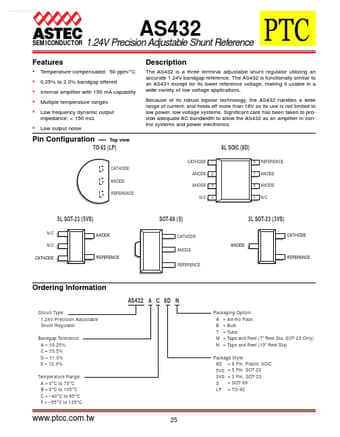

Preview of AS432 PDF

Datasheet Details

Part number:

AS432

Manufacturer:

Astec

File Size:

64.58 KB

Description:

1.24v precision adjustable shunt reference.
