AS431 - ADJUSTABLE PRECISION SHUNT REGULATORS

AS431 Description

A Product Line of Diodes Incorporated AS431 ADJUSTABLE PRECISION SHUNT REGULATORS .
The AS431 is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range.

AS431 Applications

* such as switching power supply, charger and other adjustable regulators. The output voltage of AS431 can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The AS431 precision reference is offered in two voltage tolerance: 0.5% and 1.0%. This IC is available

📥 Download Datasheet

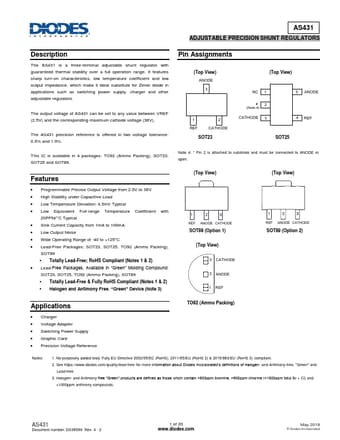

Preview of AS431 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS431
Manufacturer
DIODES ↗
File Size
534.73 KB
Datasheet
AS431-Diodes.pdf
Description
ADJUSTABLE PRECISION SHUNT REGULATORS
