AS431C

Precision Adjustable Shunt Regulator

AS431C Features

* Wide Operating Current…………………….1mA to 150mA

* Extended Termperature Range……………………… 105°C

* Low Temperature Coeffecient 30 ppm/°C

* Offered in TO-92, SOT-89 & SOT-23-5 Packages

* Improved Replacement in Performance for TL431

* Low Cost Solution APPLI

AS431C General Description

The AS431C is a 3-Terminal Adjustable Shunt Voltage Regulator providing a highly accurate bandgap reference. AS431C acts as an open-loop error amplifier with a 2.5V temperature compensation reference. The AS431C thermal stability, wide operating current (150mA) and temperature range (105°C) makes it.

AS431C Datasheet (111.53 KB)

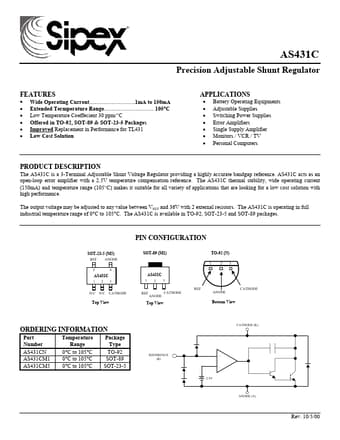

Preview of AS431C PDF

Datasheet Details

Part number:

AS431C

Manufacturer:

Sipex

File Size:

111.53 KB

Description:

Precision adjustable shunt regulator.
