AS8F1M32 Datasheet (Austin Semiconductor) - 1M x 32 FLASH FLASH MEMORY MODULE

AS8F1M32, 1M x 32 FLASH FLASH MEMORY MODULE

The Austin Semiconductor, Inc.

AS8F1M32 is a 32 Mbit, 5.0 voltonly Flash memory.

This device is designed to be programmed insystem with the standard system 5.0 volt VCC supply.

The AS8F1M32 offers an access time of 90ns, allowing high-speed microprocessors to operate without wait states.

To eliminat

AUSTIN SEMICONDUCTOR, INC.

Austin Semiconductor, Inc.

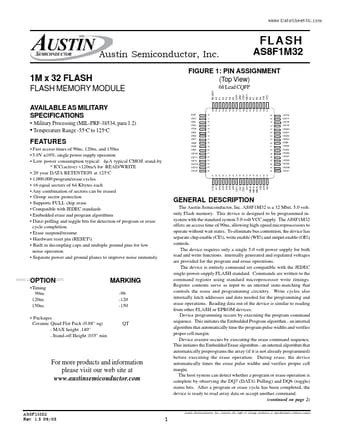

1M x 32 FLASH FLASH MEMORY MODULE AVAILABLE AS MILITARY SPECIFICATIONS Military Processing (MIL-PRF-38534, para 1.2) Temperature Range -55oC to 125oC AS8F1M32 FLASH FIGURE 1: PIN ASSIGNMENT (Top View) 68 Lead CQFP RESET A0 A1 A2 A3 A4 A5 CS3 GND CS4 WE1 A6 A7 A8 A9 A10 VCC 08 07 06 05 02 01 67 65 09 04 03 68 66 64 63 62 I/O0 I/O1 I/02 I/O3 I/O4 I/O5 I/O6 I/O7 GND I/O8 I/O9 I/O10 I/O11 I/012 I/O13 I/O14 I/O15 61 10 11

AS8F1M32 Features

* Fast access times of 90ns, 120ns, and 150ns

* 5.0V ±10%, single power supply operation

* Low power consumption typical: 4µA typical CMOS stand-by

* ICC(active)
