AS8E32K32, 32K x 32 EEPROM

AUSTIN SEMICONDUCTOR, INC.AS8E32K32 32K x 32 EEPROM EEPROM AVAILABLE AS MILITARY SPECIFICATIONS * * SMD 5962-94614: AS8E32K32 MIL-S.
The Austin Semiconductor, Inc.

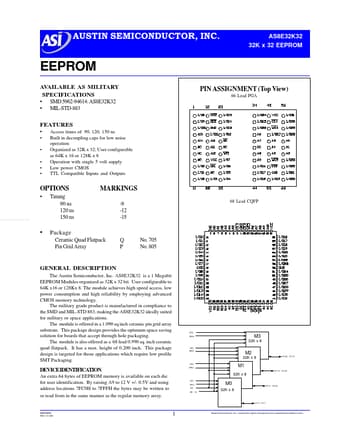

datasheet Preview Page 1 from Datasheet4u.com

AS8E32K32_AustinSemiconductor.pdf

AS8E32K32 Datasheet Preview — Preview of AS8E32K32 PDF

Datasheet Details

Part number:

AS8E32K32

Manufacturer:

Austin Semiconductor

File Size:

178.73 KB

Description:

32K x 32 EEPROM

Features

* Access times of 90, 120, 150 ns Built in decoupling caps for low noise operation Organized as 32K x 32; User configurable as 64K x 16 or 128K x 8 Operation with single 5 volt supply Low power CMOS TTL Compatible Inputs and Outputs OPTIONS

Applications

* The module is offered in a 1.090 sq inch ceramic pin grid array substrate. This package design provides the optimum space saving solution for boards that accept through hole packaging. The module is also offered as a 68 lead 0.990 sq. inch ceramic quad flatpack. It has a max. height of 0.200 inch.
