AS8FLC1M32, 3.0Volt Boot Block FLASH Array

The Austin Semiconductor, Inc.

AS8FLC1M32B is a 32Mb FLASH Multi-Chip Module organized as 1M x 32 bits.

The module achieves high speed access, low power consumption and high reliability by employing advanced CMOS memory technology.

The military grade product is manufactured in compliance to the MIL-

AUSTIN SEMICONDUCTOR, INC.

Austin Semiconductor, Inc.

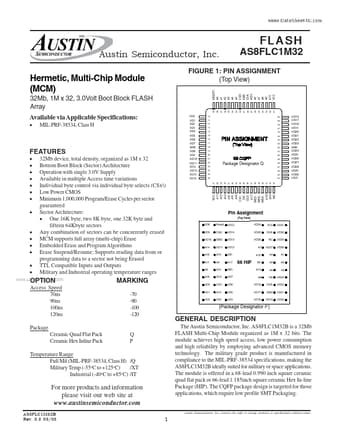

Hermetic, Multi-Chip Module (MCM) 32Mb, 1M x 32, 3.0Volt Boot Block FLASH Array Available via Applicable Specifications: MIL-PRF-38534, Class H I/O0 I/O1 I/02 I/O3 I/O4 I/O5 I/O6 I/O7 GND I/O8 I/O9 I/O10 I/O11 I/012 I/O13 I/O14 I/O15 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 AS8FLC1M32 FLASH FIGURE 1: PIN ASSIGNMENT (Top View) RESET A0 A1 A2 A3 A4 A5 CS3 GND CS4 WE1 A6 A7 A8 A9 A10 VCC

AS8FLC1M32 Features

* 32Mb device, total density, organized as 1M x 32 Bottom Boot Block (Sector) Architecture Operation with single 3.0V Supply Available in multiple Access time var
