ACPL-W302 - 0.4 Amp Output Current IGBT Gate Driver Optocouplers

This page provides the datasheet information for the ACPL-W302, a member of the ACPL-P302 0.4 Amp Output Current IGBT Gate Driver Optocouplers family.

Datasheet Summary

Description

The ACPL-P302/W302 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage.

These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.

Features

  • x High speed response. x Ultra high CMR. x Bootstrappable supply current. x Available in Stretched SO-6 package x Package Clearance/Creepage at 8mm (ACPL-W302) x Safety Approval: UL1577 recognized with 3750 Vrms for 1 minute for ACPL-P302 and 5000 Vrms for 1 minute for ACPLW302. CSA Approved. IEC/EN/DIN EN 60747-5-2 Approved VIORM = 891 Vpeak for ACPL-P302 VIORM = 1140 Vpeak for ACPL-W302.

📥 Download Datasheet

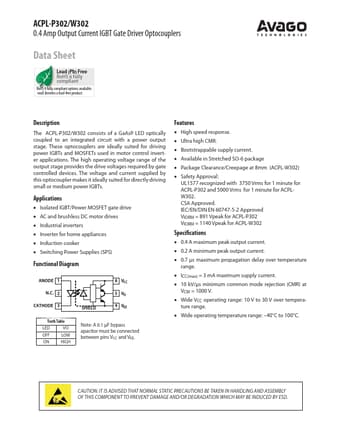

Datasheet preview – ACPL-W302

Datasheet Details

Part number ACPL-W302
Manufacturer Avago Technologies
File Size 205.63 KB
Description 0.4 Amp Output Current IGBT Gate Driver Optocouplers
Datasheet download datasheet ACPL-W302 Datasheet
Additional preview pages of the ACPL-W302 datasheet.

📁 Similar Datasheet

  • ACPL-W343 - 4.0 Amp Output Current IGBT Gate Drive Optocoupler (Avago)
  • ACPL-W345 - 1.0 Amp Output Current Power & SiC MOSFET Gate Drive Optocoupler (Avago)
  • ACPL-W346 - GaN and SiC MOSFET Gate Drive Optocoupler (Broadcom)
  • ACPL-W347 - 1.0 Amp Output Current SiC/GaN MOSFET and IGBT Gate Drive Optocoupler (Avago)
  • ACPL-W349 - 2.5-Amp Output Current SiC/GaN MOSFET and IGBT Gate Drive Optocoupler (Broadcom)
  • ACPL-W480 - High CMR Intelligent Power Module and Gate Drive Interface Optocoupler (Avago)
  • ACPL-W481 - High CMR Optocoupler (Avago)
  • ACPL-W483 - Inverted Logic High CMR Intelligent Power Module and Gate Drive Interface Optocoupler (AVAGO)
  • ACPL-W484 - Positive Logic High CMR Intelligent Power Module and Gate Drive Interface Optocoupler (Avago)
  • ACPL-W50L - Digital Optocoupler (Broadcom)
Other Datasheets by Avago Technologies
  • ACPL-W302-000E - 0.4 Amp Output Current IGBT Gate Driver Optocouplers
  • ACPL-W302-060E - 0.4 Amp Output Current IGBT Gate Driver Optocouplers
  • ACPL-W302-500E - 0.4 Amp Output Current IGBT Gate Driver Optocouplers
  • ACPL-W302-560E - 0.4 Amp Output Current IGBT Gate Driver Optocouplers
  • ACPL-W314 - 0.6 Amp Output Current IGBT Gate Driver Optocoupler
  • ACPL-W341 - 3.0 Amp Output Current IGBT Gate Drive Optocoupler
  • ACPL-W456 - (ACPL-P456/W456) Intelligent Power Module and Gate Drive Interface Optocouplers
  • ACPL-M43T - Automotive Wide Operating Temperature 1MBd Digital Optocoupler

Full PDF Text Transcription

Click to expand full text
ACPL-P302/W302 0.4 Amp Output Current IGBT Gate Driver Optocouplers Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant options available; -xxxE denotes a lead-free product Description The ACPL-P302/W302 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving small or medium power IGBTs. Features x High speed response. x Ultra high CMR. x Bootstrappable supply current.
